The Allett Uplift 86 is built on the experience gained with previous models, and the feedback of groundsmen, to create an 86cm/34” solid and dependable stadium rotary mower. Twin contra-rotating blades produce a high lift cut and vacuum for increased efficiency while a full-width rear roller produces the most perfect stripes.
Ideal for debris collection after matches, the Uplift 86 features a five-speed heavy-duty gearbox which allows the operator to select a comfortable forward speed with greater control in small, intricate areas. Higher speed selection, up to 6.7km/h (4.2mph), quickly covers large areas for increased efficiency.
Reliability and durability are inbuilt in the Uplift 86 with chain self-tensioning, bearing protection and solid front tyres running on bronze bushes. The cutting height is completely variable from 1.5cm to 7.5cm (0.59in – 2.3in) with a steel fabricated cutter deck and three-piece, full width, steel roller making this a tough, robust and versatile mower.
86cm / 860mm (34”) cut width- Twin blade Rotary mower with rear roller
- Twin bladed high lift vacuum system designed for debris collection after matches- Strong suction and amazing presentation
- 5-speed gearbox
- Cutting height- Adjustable from 15-75mm ( 0.6 inch to 2.96in)- 2 point micro height adjusters with front wheel height locking
- 90-litre grass collector

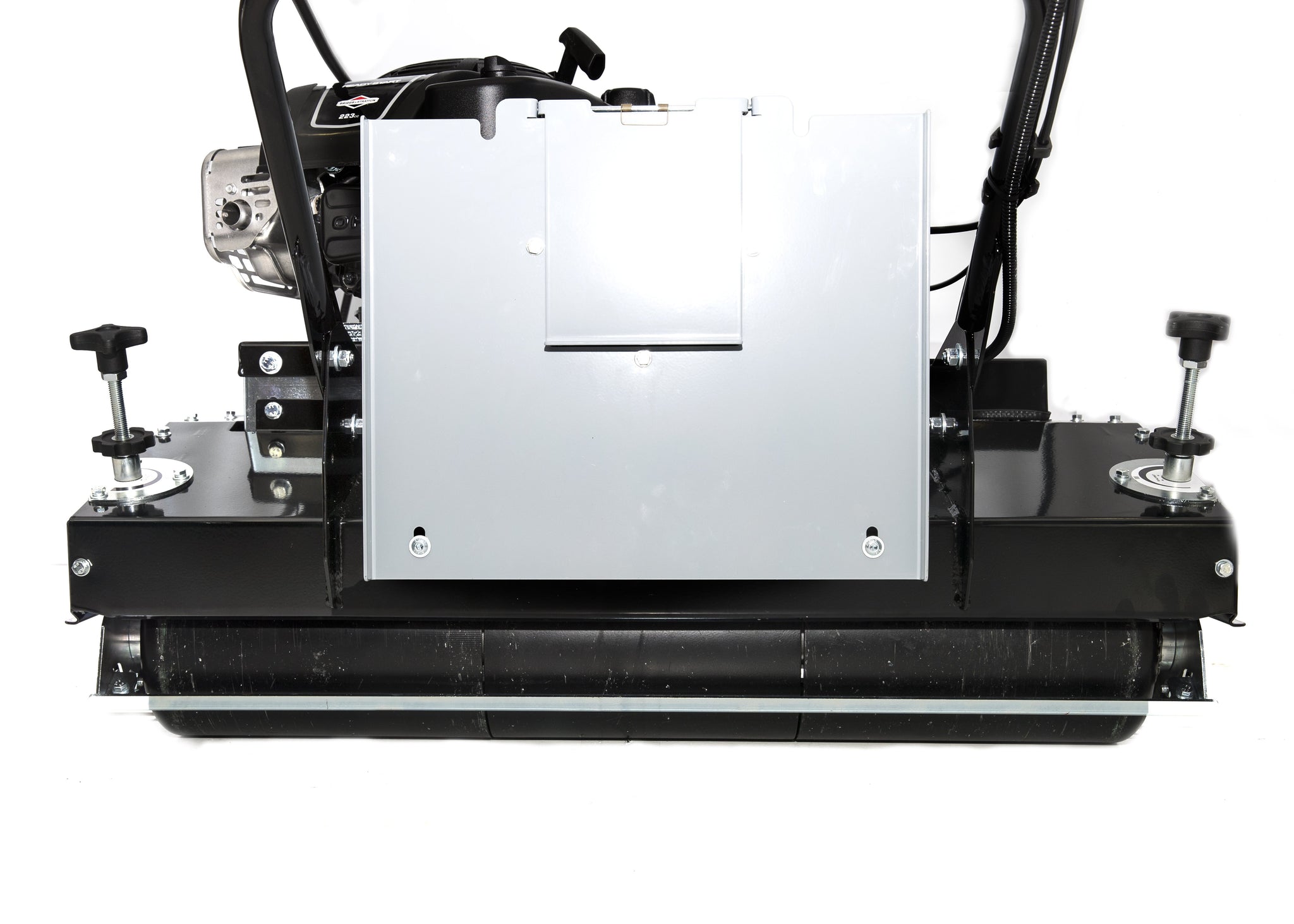

- Rear roller 3 piece steel, full width rear roller with differential Roller Drive 5 speed heavy duty gear box with cast Aluminium housing and steel gears
- Grass bag capacity 90 litres
- Engine 223cc Briggs and Stratton® 950E vertical crankshaft engine featuring “ReadyStart” ® . Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
- Blade system 2 x 457mm (18in) high lift blades, contra-rotating and timed producing high volume air flow
- Blade drive Separate bale bar for roller drive & blades allows 3 modes 1) Roller drive only, 2) Blades only or 3) Roller drive and Blades. Belt drive to spindle. Blade brake clutch (operator presence controls)
- Cutter deck construction Steel fabricated
- Weight 145kg (320lbs)
- Overall dimensions Width: 940mm (37in) Height: 950mm-1080mm (37-43in) Length: 2000mm (79in)
- Starter mechanism Pull recoil
- Speed 5 speed gearbox: 1st 1.9km/h (1.2mph), 2nd 3.0km/h (1.9mph), 3rd 4.5km/h (2.8mph), 4th 5.7km/h (3.6mph), 5th 6.7km/h (4.2mph)
- Fuel tank capacity 1.1 litre
- Front wheels 200mm (8in) diameter solid front wheels running on bronze bushes (greasable)
- Handlebars Adjustable heights for operator comfort
- Optional accessories UPLIFT 86B fixed strip brush for Uplift 86 (soft, medium or hard bristle)
